XRD In-Situ Cell for Battery Characterization | Kapton Window

In-situ XRD electrochemical cell with Kapton window for real-time battery material analysis. Single and double-window configurations. Compatible with standard diffractometers.

In-situ XRD cells allow real-time observation of structural changes in battery electrode

materials during charge/discharge cycling. Our cell features a Kapton polyimide window

that transmits X-rays while maintaining electrochemical integrity. Essential for studying

phase transitions, lattice parameter changes, and crystallographic evolution in battery

materials research.

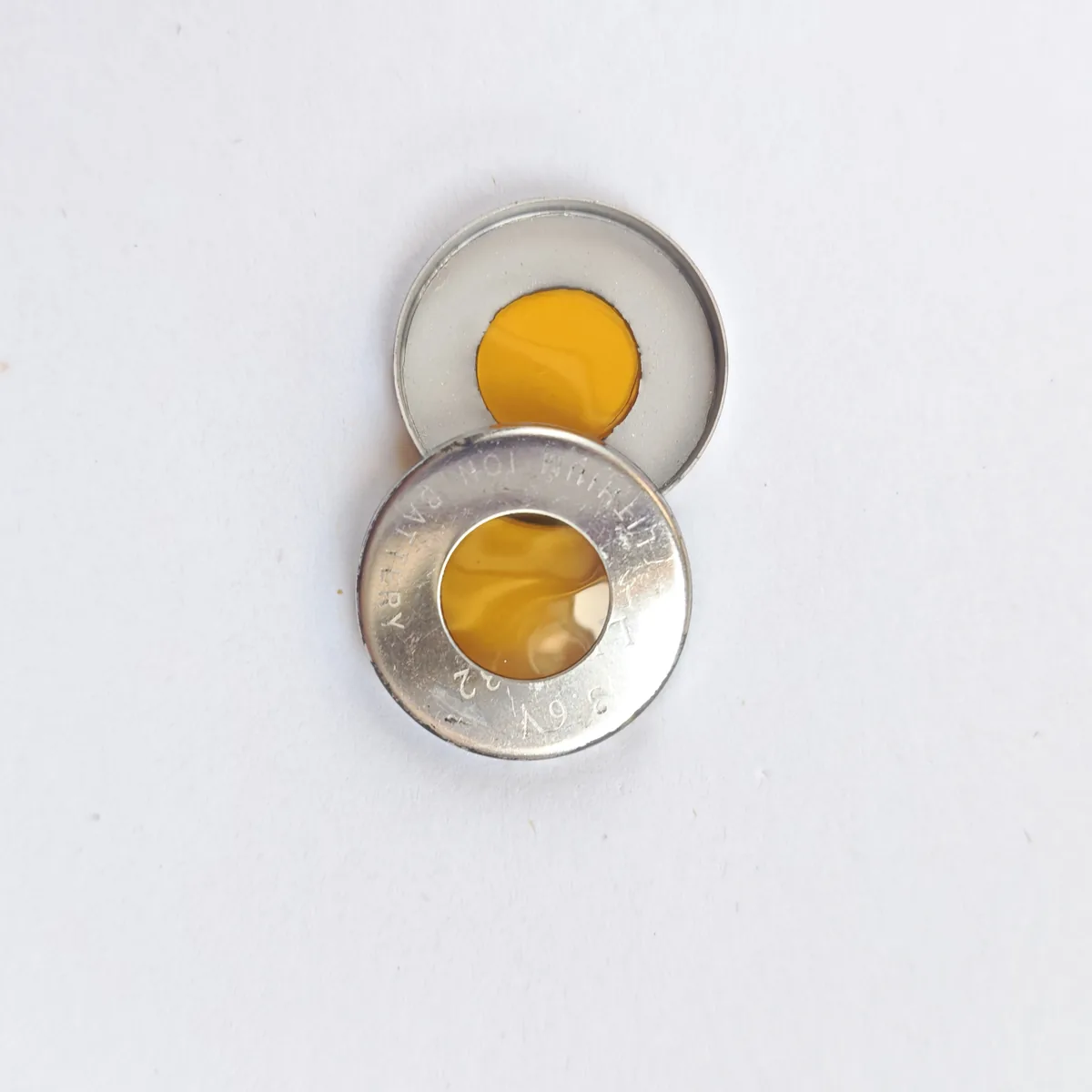

In-situ XRD electrochemical cell with stainless steel body and polyimide (Kapton) film X-ray window. Positive-window version (single-sided) for reflection mode (Bragg-Brentano geometry); dual-window version (double-sided) for transmission mode. Kapton window film offers low absorption for Cu-Kα and other common X-ray sources. Synchronized diffraction and electrochemical data acquisition via potentiostat. For operando in-situ characterization of crystal structure evolution during battery charge/discharge, enabling studies of phase transitions, intercalation/de-intercalation mechanisms, and structural relaxation.

📖 Related Guide: XRD In-Situ Cell Setup Guide

Order / Quote

ModelPackPriceAction
XRD-DUAL-1In stock · AmazonXRD Cell, dual-side window1 complete cell per unit, bubble wrapped$99.00
Buy on Amazon

10+ units: request wholesale pricing →

XRD-POS-1In stock · AmazonXRD Cell, cathode-side window1 complete cell per unit, bubble wrapped$69.00
Buy on Amazon

10+ units: request wholesale pricing →

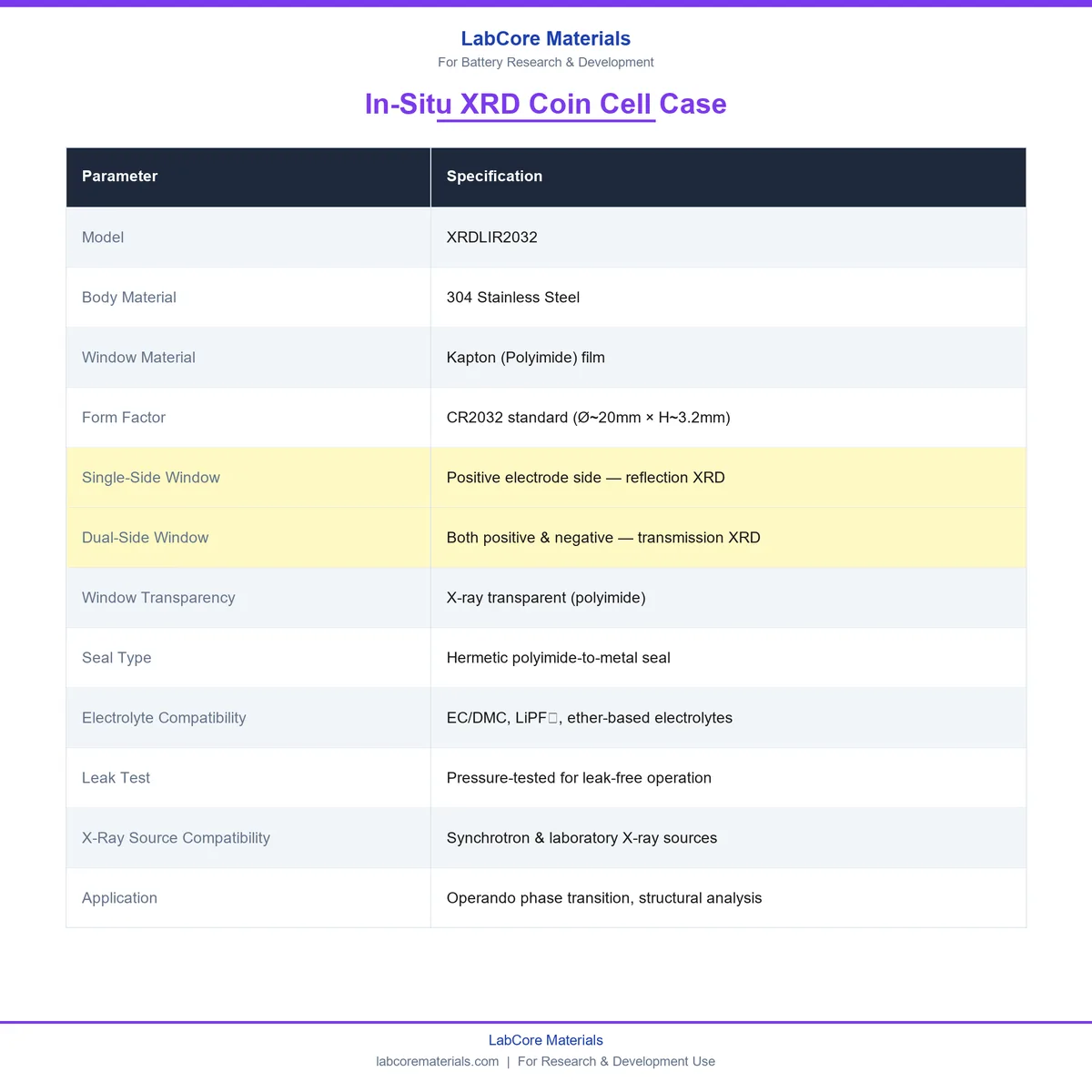

Specifications

ParameterValueUnit
Window materialKapton polyimide film
Body materialStainless steel
ConfigurationsSingle-window / dual-window
Optical modeReflection (single) / transmission (dual)
X-ray sourceCu-Kα and common sources
TechniqueIn-situ / operando XRD

The Kapton window is a precision optical component. Each cell ships wrapped in bubble film inside a sealed bag. Do not touch or wipe the window surface.

Shipping & Compliance

  • Non-Amazon orders ship from our Shenzhen facility via DHL / FedEx — typically 5–10 business days in transit to the US and EU, with tracking. Bulk orders may go by air freight.
  • Ships as empty hardware. No electrolyte, no lithium. Not classified as dangerous goods.
