2325 Separator Roll 100mm × 10m, 25 µm PP/PE/PP — Battery Separator for Na-ion / K-ion / Li-ion / Li-S Cell R&D
2325 spec PP/PE/PP trilayer microporous separator roll, 25 µm thickness, 39% porosity, 0% TD shrinkage. Cut φ18/19/24 mm discs in-lab for CR2032/2025/2016 coin cell, pouch, and 18650 cylindrical cell R&D. Compatible with Na-ion / K-ion / Li-ion / Li-S battery systems.
The LabCore **\*\*Separator 2325\*\*** is a **\*\*25 µm PP/PE/PP trilayer microporous membrane\*\*** manufactured by a dry-stretched process, **\*\*purpose-built for laboratory-scale, multi-chemistry battery research\*\***. The PP outer layers deliver oxidation resistance and cycling stability; the PE inner layer provides thermal shutdown. Transverse-direction shrinkage is held to ≤0% @ 90 °C/1h — a safety-critical spec that suppresses internal shorts during high-temperature cycling. The 39±5% porosity balances ion transport and mechanical strength. Each roll is 100 mm wide × 10 m long, yielding \~390 φ18 mm discs — enough for 6–12 months of typical lab use.
Order / Quote
| Model | Pack | Price | Action |
|---|---|---|---|
| SEP-2325-D18In stock | 2325 Separator Discs, φ18 mm × 500 pcs500 pcs/box, φ18 mm discs. Factory pre-cut, ready to use in CR2032. | $59.99 | |
| SEP-2325-R100In stock | 2325 Separator Roll, 100 mm × 10 m1 roll vacuum-sealed, bubble-wrapped, in carton. 100 mm width × 10 m length. | $44.99 |
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Structure | PP/PE/PP 三層 PP/PE/PP trilayer | trilayer |
| Thickness | 25 ± 2 | µm |
| Porosity | 39 ± 5 | % |
| Gurley（JIS） | 620 ± 75 | s/100cc |
| Puncture strength | ≥ 380 | g |
| TD shrinkage @ 90 °C/1h | ≤ 0 | % |
- **Coin cell assembly (CR2016 / CR2025 / CR2032)** — compatible with Li-ion, Na-ion, K-ion and Li-S chemistries
- **Pouch cell and cylindrical cell (18650 / 26650) prototyping** — large-area die-cutting or direct lamination
- **Lithium-sulfur (Li-S) cell R&D** — compatible with liquid / gel / catholyte-electrolyte configurations
- **Sodium-ion (Na-ion) and potassium-ion (K-ion) battery research** — stable electrolyte interface across chemistries
- **Supercapacitor separators** — high porosity supports ion adsorption

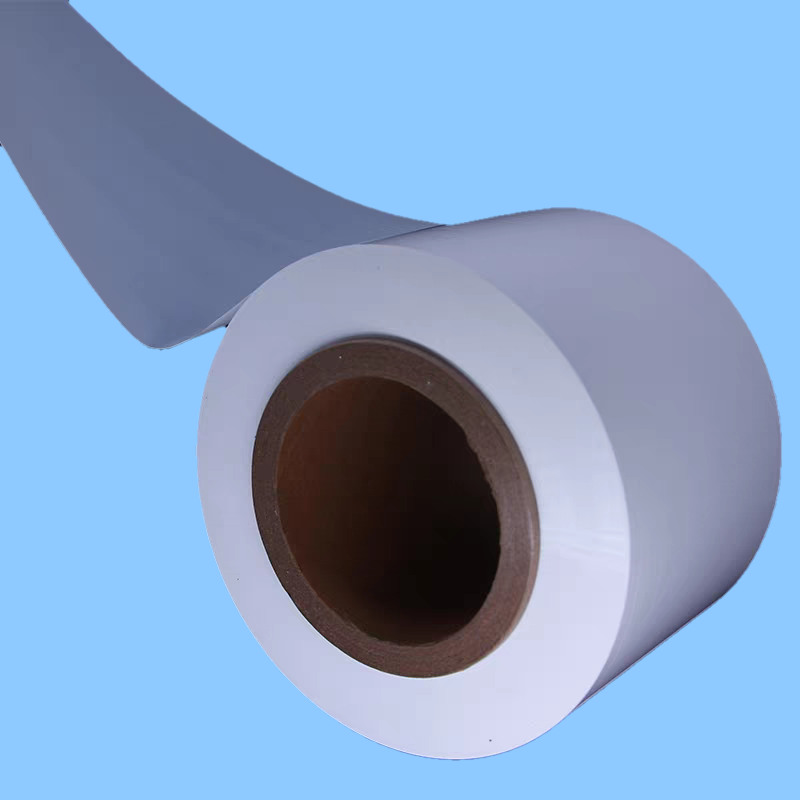

Product Images
Shipping & Compliance
- Non-hazardous. Ships in dry conditions. Keep dry, do not crush.
