Droplet Generation Microfluidic Chip, PDMS/Glass, 100µm Channel, Flow-Focusing, Plasma-Bonded, with PTFE Tubing & Fittings Kit, 75x25mm Slide, for Lab Research (RUO)
Flow-focusing microfluidic chip with 100×100 µm channels, RTV615 PDMS plasma-bonded to borosilicate glass. Includes PTFE tubing and fittings for plug-and-play monodisperse droplet generation in lab research (RUO).

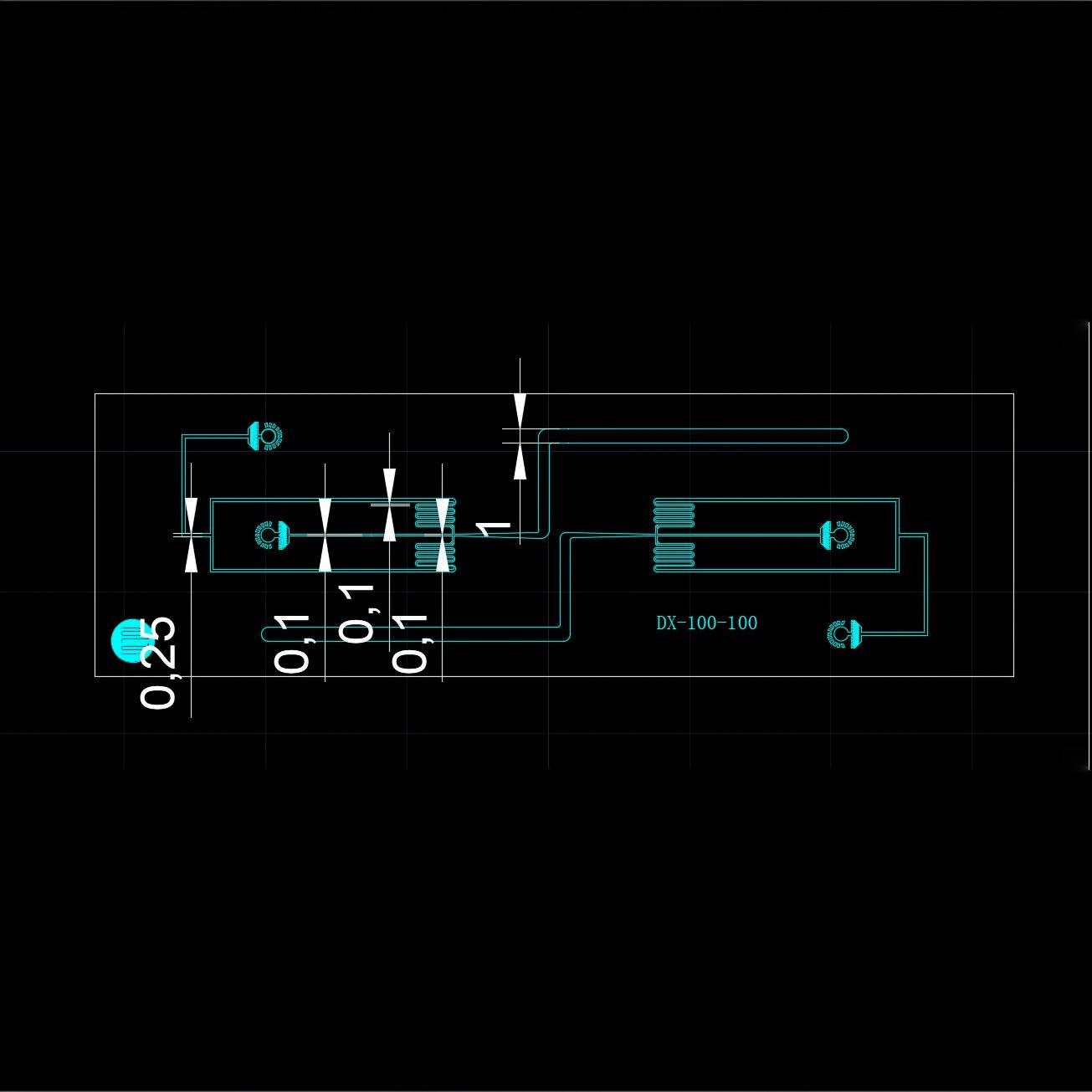

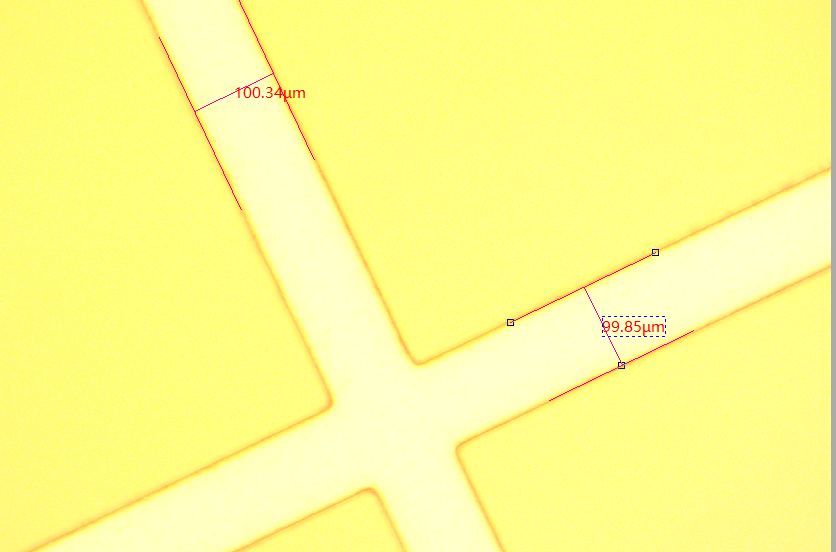

The Droplet Generation Microfluidic Chip uses a flow-focusing geometry with 100 µm-wide × 100 µm-deep channels to generate monodisperse droplets for research applications. RTV615 PDMS is permanently oxygen-plasma-bonded to 1 mm borosilicate glass, providing a leak-free seal and excellent optical clarity for both brightfield and fluorescence imaging. Each chip is fabricated via soft lithography with ±5 µm tolerance and individually quality-checked; measured channel-width data is shipped with every unit. The kit includes PTFE tubing, blunt needle tips and a syringe — 0.7 mm inlet/outlet ports are compatible with standard 22-gauge fittings, so the chip runs out of the box. Standard 75×25 mm slide footprint fits common chip holders. Ideal for droplet microfluidics, digital PCR workflows and single-cell research. For research use only (RUO). Not for use in diagnostic or therapeutic procedures.
In stock at Amazon warehouse, ship same day:https://www.amazon.com/dp/B0H6PBG64L
Order / Quote
| Model | Pack | Price | Action |
|---|---|---|---|
| LC-DG-700005In stock · Amazon | droplet-generation-microfluidic-chip1× PDMS/glass chip (75×25 mm), 1× PTFE tubing set, 2× blunt needle tips, 1× syringe, 1× sealed ESD bag with RUO label | $89.99 |
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Material | RTV615 PDMS / Borosilicate Glass | |
| Channel Geometry | Flow-Focusing | |
| Channel Width | 100 | µm |
| Channel Depth | 100 | µm |
| Chip Format | 75 × 25 (Slide) | mm |
| Substrate Thickness | 1 | mm |
| Port Size | 0.7 (22-gauge compatible) | mm |
| Bonding | Oxygen Plasma (Permanent) | |
| Fabrication Tolerance | ±5 | µm |
| Operating Pressure | ≤ 0.3 | MPa |
| Research Use | For Research Use Only (RUO) |
Setup & Troubleshooting
- Droplet Microfluidics: Flow-Focusing vs T-Junction — Which Geometry Should You Choose?A practical comparison of flow-focusing and T-junction droplet generators: how each geometry affects droplet size, polydispersity, throughput, and ease of operation.
- PDMS Microfluidic Chip Guide: Handling, Storage, and TroubleshootingA practical guide to working with PDMS/glass microfluidic chips: how to handle, store, prep for use, and troubleshoot common issues like leaks, bubbles, and surface contamination.
Product Images

Shipping & Compliance
- Ships as empty microfluidic hardware. No reagents, no biological materials. Not classified as dangerous goods.
