Battery-Grade Aluminum Laminated Film for Pouch Cell Packaging | 76-153μm

Battery-grade aluminum laminated film for pouch cell packaging. Nylon/adhesive/Al/PP multilayer structure with high heat-seal and peel strength. Custom widths, lengths and thicknesses.

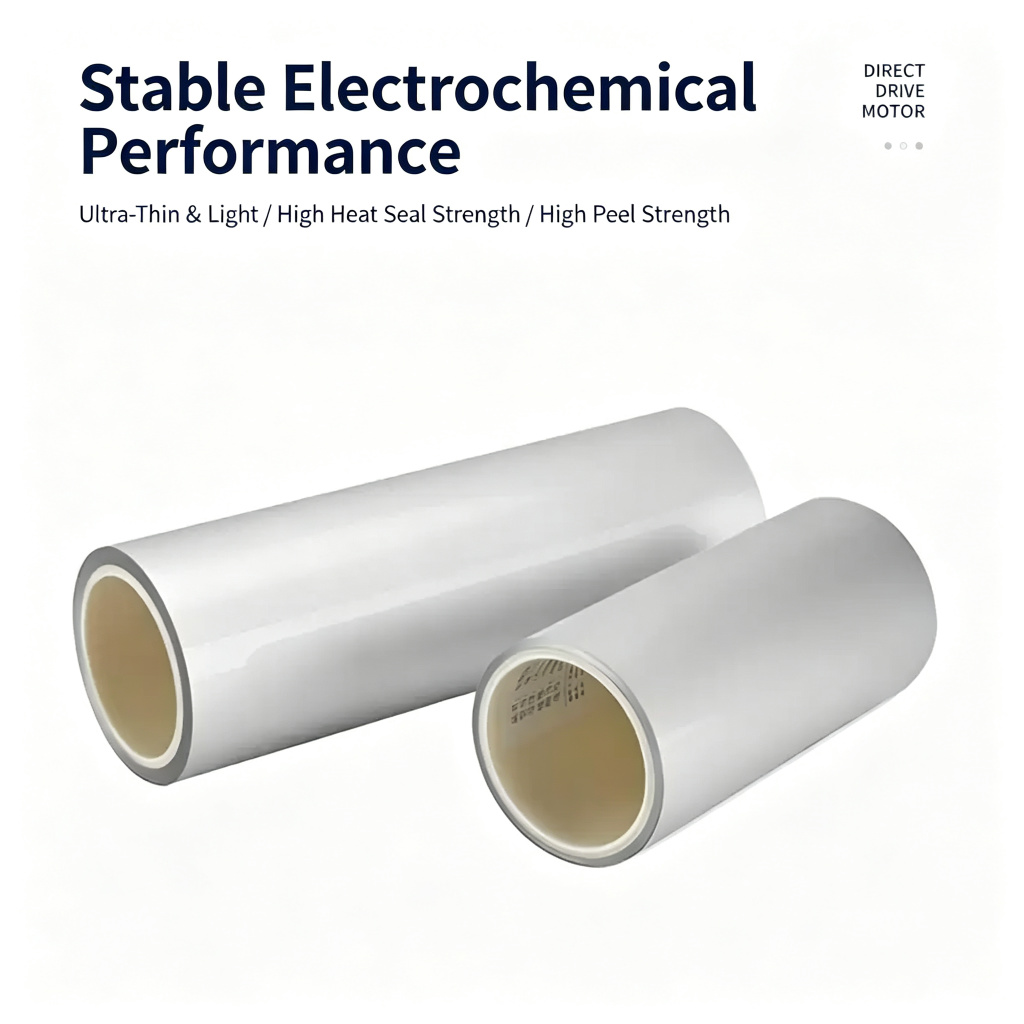

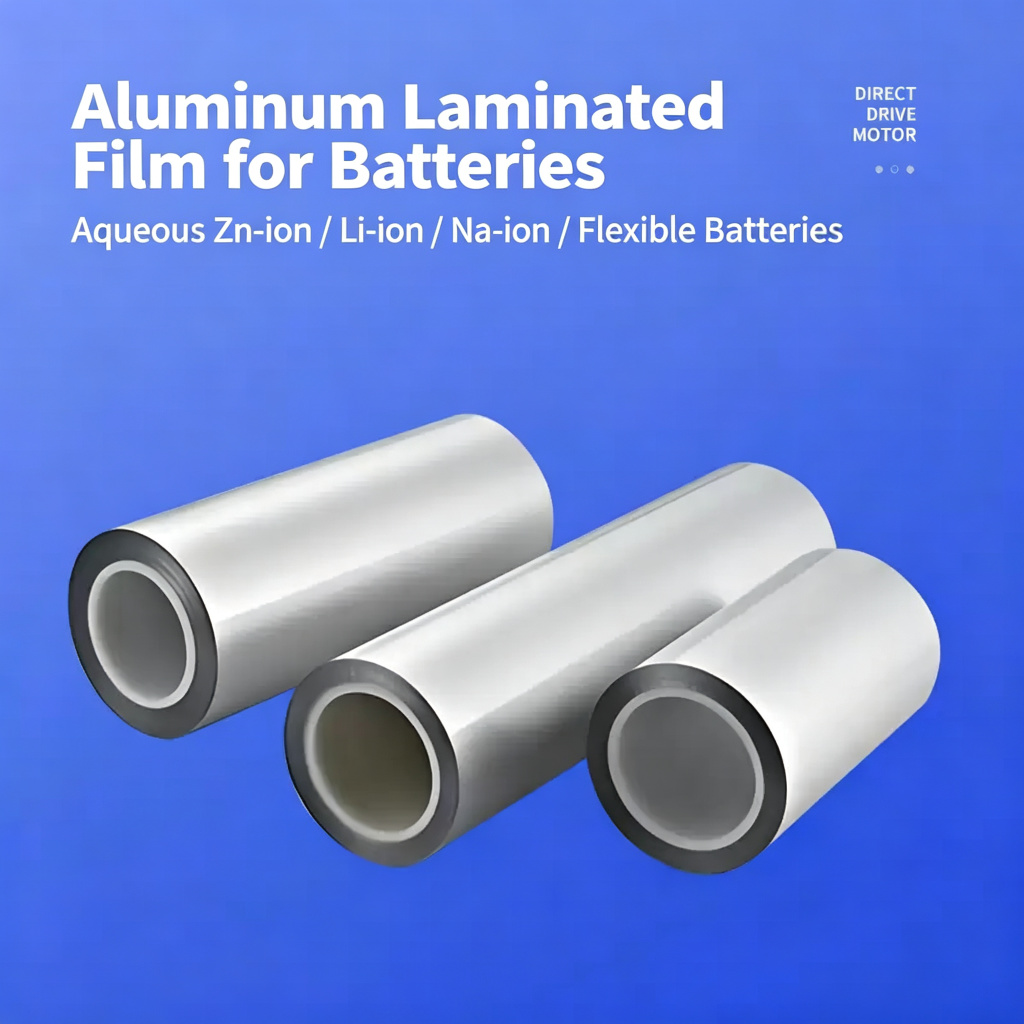

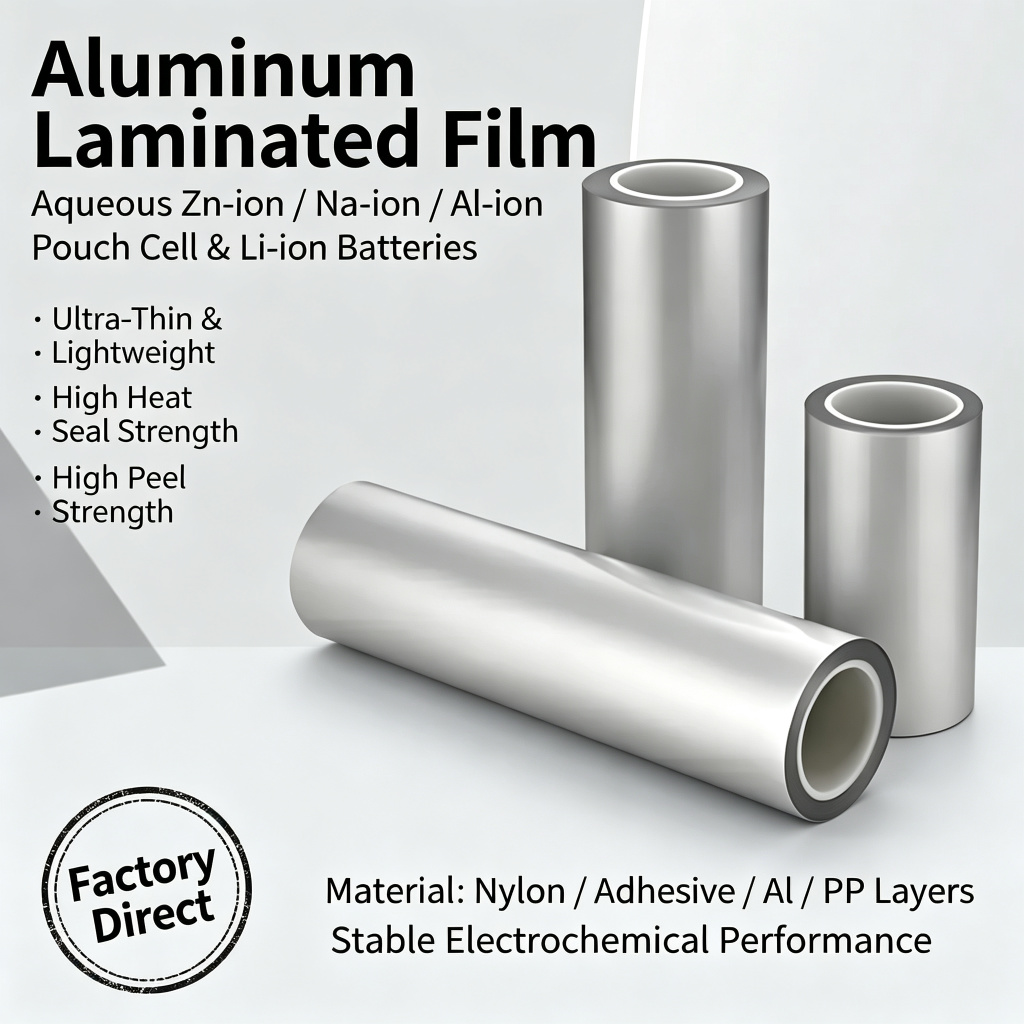

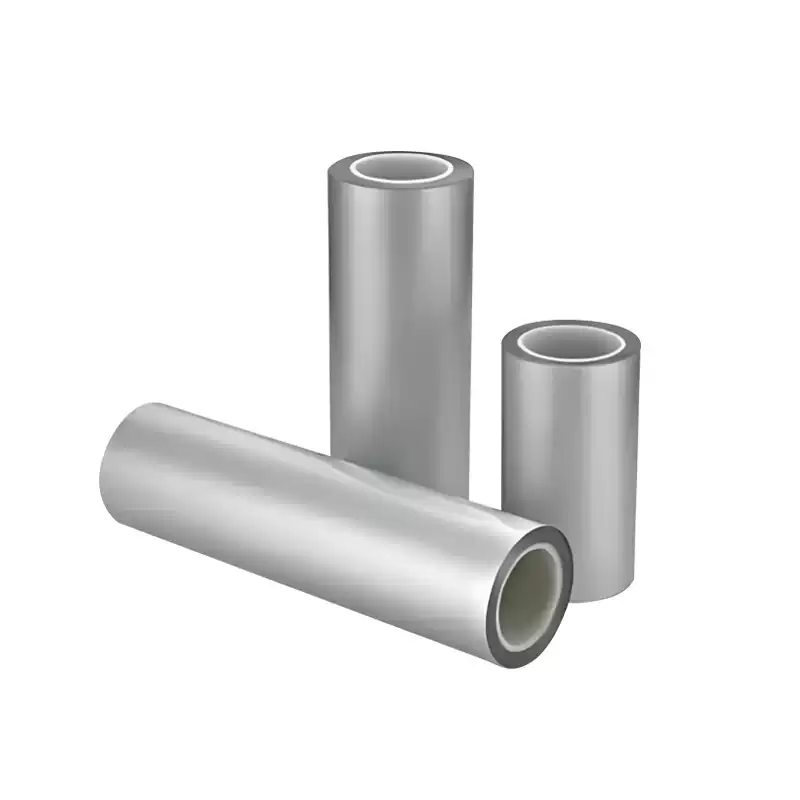

Battery-Grade Aluminum Laminated Film (ALF) for Pouch Cell Packaging

This battery-grade aluminum laminated film is a factory-direct material designed for assembling pouch-type cells in research and prototyping. The multilayer structure — nylon outer layer / adhesive / aluminum foil barrier / polypropylene heat-seal layer — combines mechanical strength, moisture and oxygen barrier, and reliable sealing.

Key features:

  • Multilayer construction: nylon / adhesive / Al / PP (battery grade)

  • Stable electrochemical performance for cell assembly

  • High heat-seal strength and peel strength

  • Ultra-thin and lightweight (76-153 μm thickness)

  • Custom slitting: width, length and thickness per order

Available in thicknesses of 76, 88, 113 and 153 μm, widths of 90-600 mm and roll lengths of 3-200 m. Custom cutting and lamination available on request.

Order / Quote

ModelPackPriceAction
ALF-ROLLShips from ShenzhenShips in 2–5 business days1 roll: 113 μm × 200 mm × 5 m, factory-sealed1 roll:factory-sealed$109.00

Applications:

  • Lithium-ion pouch cells
  • Aqueous zinc-ion (Zn-ion) pouch cells
  • Sodium-ion (Na-ion) and aluminum-ion pouch cells
  • Solid-state cell packaging research
  • Prototype and small-batch cell fabrication

Shipping & Compliance

  • Non-Amazon orders ship from our Shenzhen facility via DHL / FedEx — typically 5–10 business days in transit to the US and EU, with tracking. Bulk orders may go by air freight.
