T-Junction Droplet Microfluidic Chip, PDMS/Glass, 100x50µm Channel, Plasma-Bonded, with PTFE Tubing & Syringe Kit, 75x25mm Slide, for Lab Research (RUO)
T-junction droplet chip with 100 µm-wide × 50 µm-deep channels, RTV615 PDMS plasma-bonded to borosilicate glass. Includes PTFE tubing and syringe. Tight droplet size distributions at low flow rates for lab research (RUO).

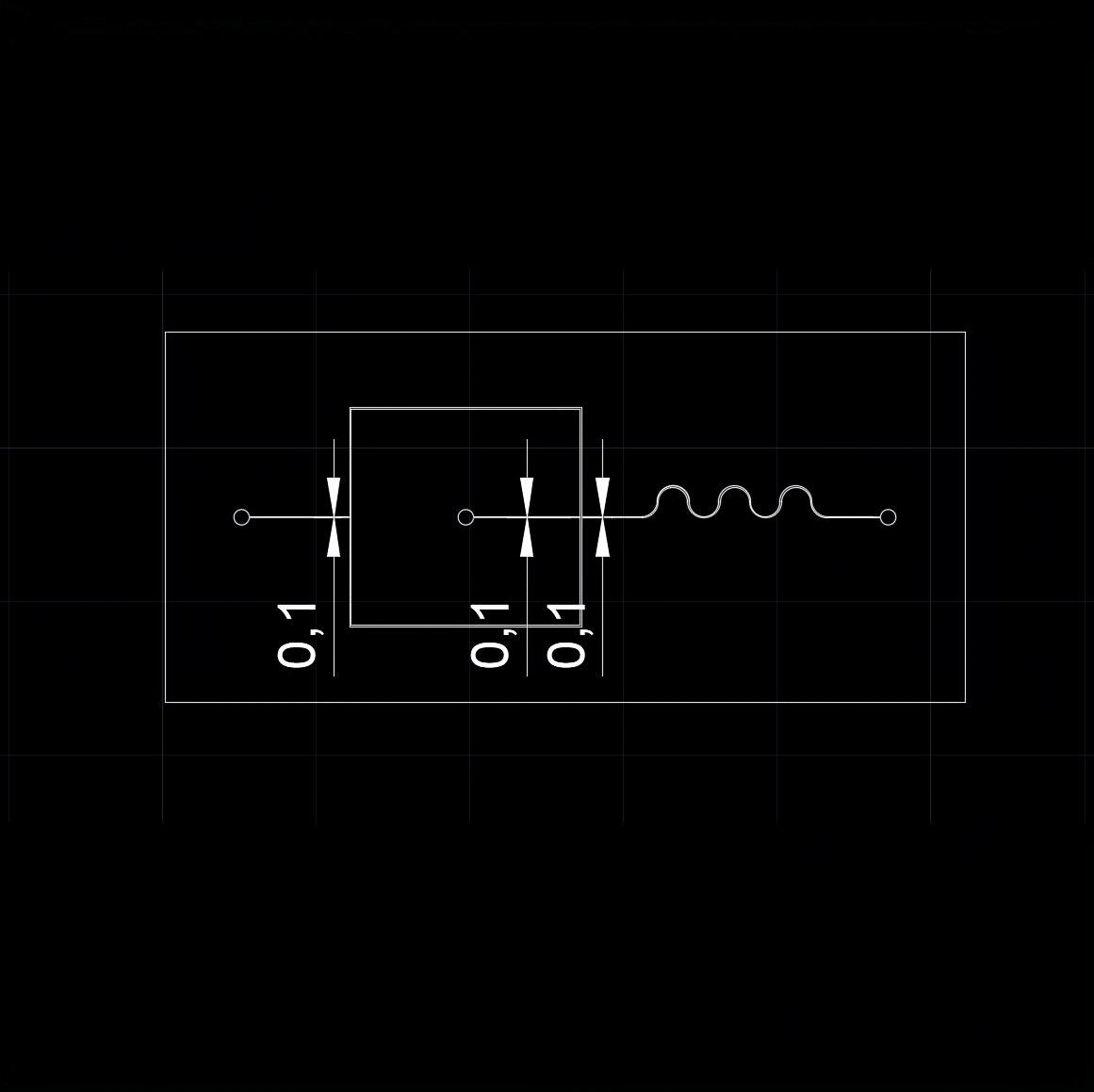

he T-Junction Droplet Microfluidic Chip uses a classic T-junction geometry with 100 µm-wide × 50 µm-deep channels to generate controlled droplet break-up with tight size distributions. The optimized 50 µm channel depth yields narrower droplet-size distributions at lower flow rates compared to deeper designs. RTV615 PDMS is permanently plasma-bonded to 1 mm borosilicate glass for a leak-free seal and excellent optical clarity. The complete starter kit includes PTFE tubing, blunt needle tips and a syringe; 0.7 mm ports connect to standard microfluidic fittings. Standard 75×25 mm slide format fits common chip holders. Ideal for droplet generation, emulsion studies and multiphase-flow research. **For research use only (RUO). Not for use in diagnostic or therapeutic procedures.**
In stock at Amazon warehouse, ship same day: [https://www.amazon.com/dp/B0H6DQBG4G](https://www.amazon.com/dp/B0H6DQBG4G)
.jpg)
Order / Quote
| Model | Pack | Price | Action |
|---|---|---|---|
| LC-DG-700008In stock | T-Junction Droplet Chip, 100×50 µm, 75×25 mm, with Tubing Kit1× PDMS/glass chip (75×25 mm), 1× PTFE tubing set, 2× blunt needle tips, 1× syringe, 1× sealed ESD bag with RUO label | As listed on Amazon | 10+ units: request wholesale pricing → |
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Material | RTV615 PDMS / Borosilicate Glass | |
| Channel Geometry | T-Junction | |
| Channel Width | 100 | µm |
| Channel Depth | 50 | µm |
| Chip Format | 75 × 25 (Slide) | mm |
| Substrate Thickness | 1 | mm |
| Port Size | 0.7 (22-gauge compatible) | mm |
| Bonding | Oxygen Plasma (Permanent) | |
| Fabrication Tolerance | ±5 | µm |
| Operating Pressure | ≤ 0.3 | MPa |
Product Images
Shipping & Compliance
- Ships as empty microfluidic hardware. No reagents, no biological materials. Not classified as dangerous goods.
