Single-Cell Capture Microfluidic Chip, PDMS/Glass, Hydrodynamic Trapping, 10-25µm Cells, Plasma-Bonded, with PTFE Tubing Kit, 40x15mm, for Cell Research (RUO)
Hydrodynamic single-cell capture chip with 10 µm and 20 µm flow channels, 25 µm channel height fits 10–25 µm cells. Biocompatible PDMS/glass with gas permeability for live-cell research and high-resolution fluorescence imaging (RUO).
The Single-Cell Capture Microfluidic Chip uses precision microstructures with 20 µm and 10 µm flow channels to hydrodynamically trap individual cells for research. The 25 µm channel height accommodates 10–25 µm cell diameters, enabling single-cell isolation for genomics and cell-response research. RTV615 PDMS offers gas permeability for live-cell experiments, while the glass substrate supports high-resolution fluorescence microscopy. The compact 40×15 mm format uses an optimized trap geometry for high single-cell occupancy. The ready-to-use kit includes PTFE tubing for cell loading and perfusion. Ideal for circulating-cell capture, single-cell genomics and stem-cell research. **For research use only (RUO). Not for use in diagnostic or therapeutic procedures.**
In stock at Amazon warehouse, ship same day:[https://www.amazon.com/dp/B0H6DZQDPM](https://www.amazon.com/dp/B0H6DZQDPM)
Order / Quote
| Model | Pack | Price | Action |
|---|---|---|---|
| LC-SCC-H0001In stock | ingle-Cell Capture Chip, 10/20 µm Traps, 25 µm Height, 40×15 mm, with Tubing Kit1× PDMS/glass chip (40×15 mm), 1× PTFE tubing set (cell-loading + perfusion lines), 2× blunt needle tips, 1× syringe, 1× sealed ESD bag with RUO label | As listed on Amazon | 10+ units: request wholesale pricing → |
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Material | RTV615 PDMS / Borosilicate Glass (Biocompatible) | |
| Trap Mechanism | Hydrodynamic Trapping | |

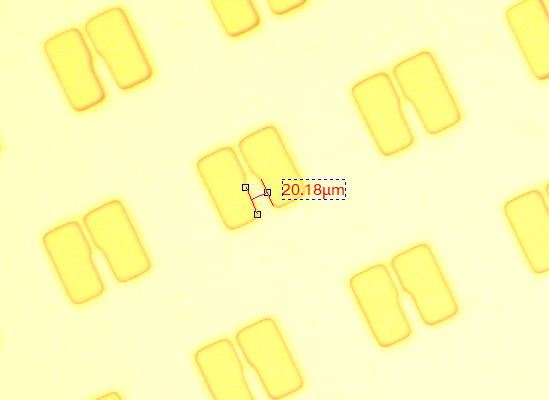

| Flow Channel Width | 10 / 20 | µm |
| Channel Height | 25 | µm |
| Target Cell Diameter | 10–25 | µm |

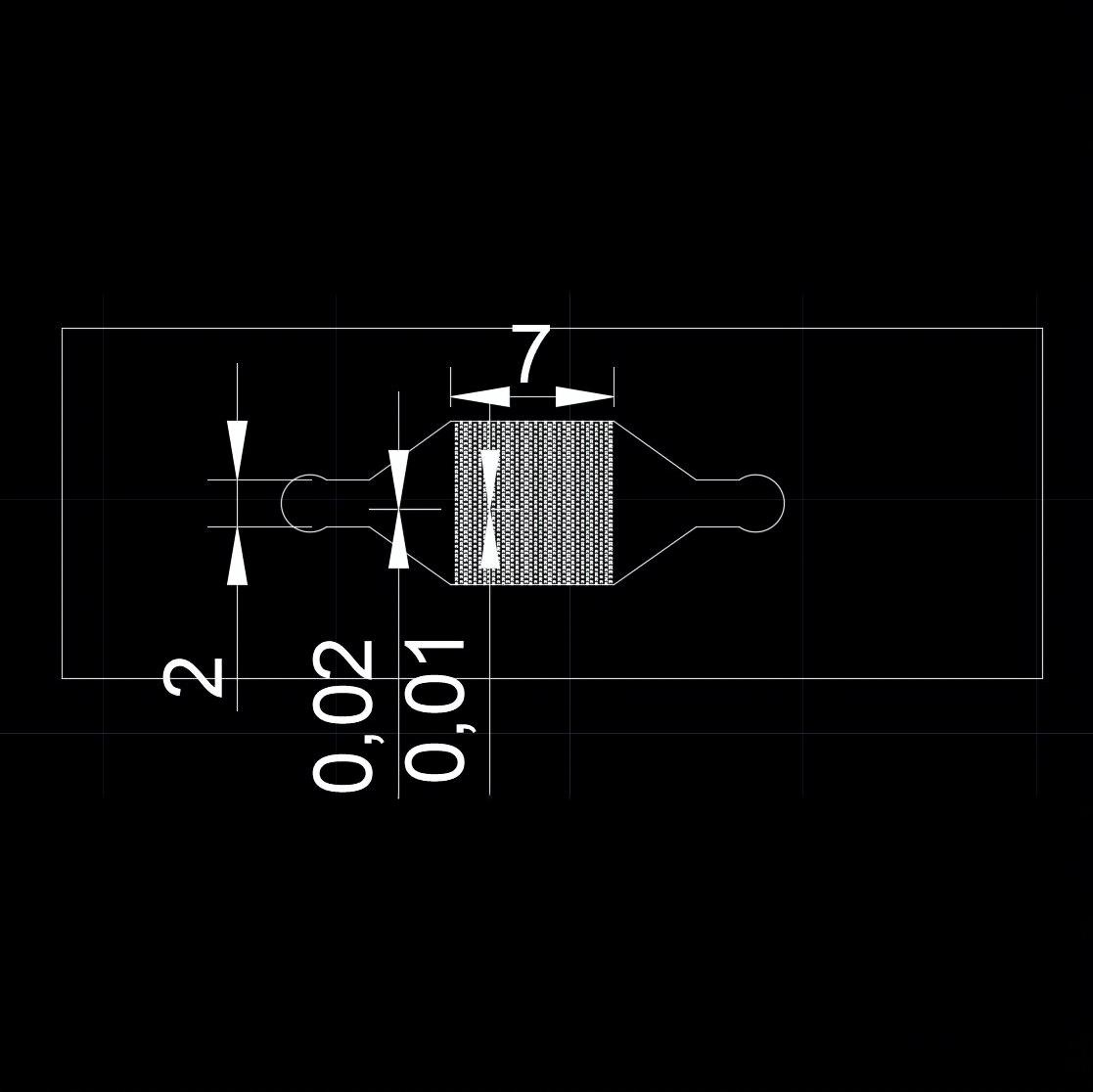

| Chip Format | 40 × 15 | mm |
| Substrate Thickness | 1 | mm |
| Port Size | 0.7 (22-gauge compatible) | mm |
| Bonding | Oxygen Plasma (Permanent) | |
| Operating Pressure | ≤ 0.2 | MPa |
| Gas Permeability | PDMS (O₂ / CO₂) |
Product Images
Shipping & Compliance
- Ships as empty, sterile-packaged microfluidic hardware. No cells, no media. Not classified as dangerous goods.
